openssl创建CA证书教程

配置生成CA证书

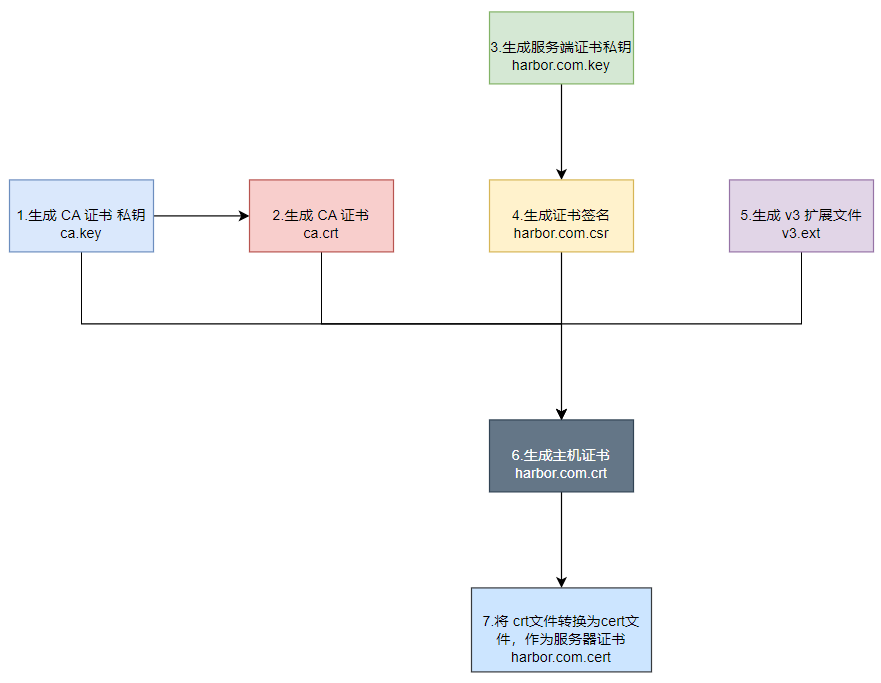

总示意图：

(1)，通过openssl创建CA证书

第一步：创建一个秘钥，这个便是CA证书的根本，之后所有的东西都来自这个秘钥

# 通过rsa算法生成2048位长度的秘钥
openssl genrsa -out myCA.key 2048

第二步：是通过秘钥加密机构信息形成公钥

# 公钥包含了机构信息，在输入下面的指令之后会有一系列的信息输入，
# 这些信息便是机构信息，公司名称地址什么的
# 这里还有一个过期信息，CA证书也会过期，openssl默认是一个月，这里设置为10年
openssl req -new -x509 -key myCA.key -out myCA.cer -days 3650

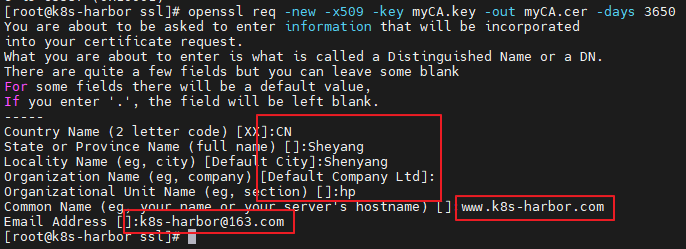

执行命令过程如下图所示：

参数名称	参数值
Country Name	国家代码，比如中国就是CN
State or Province Name	省名称
Locality Name	城市名称
Organization Name	机构名称
Organizational Unit Name	机构单位名称
Common Name	重点参数：授权给什么，因为机构是根节点所以是授权给自己
Email Address	邮件地址

(2)，创建服务器证书

在得到CA证书之后，需要通过 openssl工具对证书进行转换得到公钥（ .crt文件）和密钥（ .key文件），无论CA证书是怎么来的到这里之后就没有任何区别了，服务器证书的制作流程相较CA证书要复杂一点点。

第一步：通过openssl工具创建服务器的秘钥

# 通过RSA算法生成长度2048位的秘钥
openssl genrsa -out server.key 2048

第二步：这里是创建一个签名请求

首先 https证书的公钥不同于自定义情况下的加密证书，这里需要安装浏览器标准进行配置，首先 openssl默认的证书版本是V1，V1在支持 https时部分浏览器依旧会认为不安全，所以需要使用V3版本；同时 openssl即便是使用V3版本依旧没有附带V3的 subjectAltName字段数据（这里是证书对应的IP地址或者域名，可以用通配符）。但是这些东西命令行没法指定所以需要配置文件，我这里准备了一个：
创建 openssl.cnf 文件，并添加如下内容：

tsa_policy2 = 1.2.3.4.5.6
tsa_policy3 = 1.2.3.4.5.7
[ ca ]
default_ca = CA_default  # The default ca section
[ CA_default ]
dir  = ./demoCA  # Where everything is kept
certs  = $dir/certs  # Where the issued certs are kept
crl_dir  = $dir/crl  # Where the issued crl are kept
database = $dir/index.txt # database index file.
new_certs_dir = $dir/newcerts  # default place for new certs.
certificate = $dir/cacert.pem  # The CA certificate
serial  = $dir/serial   # The current serial number
crlnumber = $dir/crlnumber # the current crl number
crl  = $dir/crl.pem   # The current CRL
private_key = $dir/private/cakey.pem# The private key
RANDFILE = $dir/private/.rand # private random number file
x509_extensions = usr_cert  # The extentions to add to the cert
name_opt  = ca_default  # Subject Name options
cert_opt  = ca_default  # Certificate field options
default_days = 365   # how long to certify for
default_crl_days= 30   # how long before next CRL
default_md = default  # use public key default MD
preserve = no   # keep passed DN ordering
policy  = policy_match
[ policy_match ]
countryName  = match
stateOrProvinceName = match
organizationName = match
organizationalUnitName = optional
commonName  = supplied
emailAddress  = optional
[ policy_anything ]
countryName  = optional
stateOrProvinceName = optional
localityName  = optional
organizationName = optional
organizationalUnitName = optional
commonName  = supplied
emailAddress  = optional
[ req ]
default_bits  = 1024
default_keyfile  = privkey.pem
distinguished_name = req_distinguished_name
attributes  = req_attributes
x509_extensions = v3_ca # The extentions to add to the self signed cert
string_mask = utf8only
req_extensions = v3_req # The extensions to add to a certificate request
[ req_distinguished_name ]
countryName   = Country Name (2 letter code)
countryName_default  = CN
countryName_min   = 2
countryName_max   = 2
stateOrProvinceName  = State or Province Name (full name)
stateOrProvinceName_default = BeiJing
localityName   = Locality Name (eg, city)
0.organizationName  = Organization Name (eg, company)
0.organizationName_default = myca
organizationalUnitName  = Organizational Unit Name (eg, section)
commonName   = Common Name (e.g. server FQDN or YOUR name)
commonName_max   = 64
emailAddress   = Email Address
emailAddress_max  = 64
[ req_attributes ]
challengePassword  = A challenge password
challengePassword_min  = 4
challengePassword_max  = 20
unstructuredName  = An optional company name
[ usr_cert ]
basicConstraints=CA:FALSE
nsCertType = client, email, objsign
keyUsage = nonRepudiation, digitalSignature, keyEncipherment
nsComment   = "OpenSSL Generated Certificate"
subjectKeyIdentifier=hash
authorityKeyIdentifier=keyid,issuer
[ svr_cert ]
basicConstraints=CA:FALSE
nsCertType   = server
keyUsage = nonRepudiation, digitalSignature, keyEncipherment, dataEncipherment, keyAgreement
subjectKeyIdentifier=hash
authorityKeyIdentifier=keyid,issuer
extendedKeyUsage = serverAuth,clientAuth
[ v3_req ]
subjectAltName = @alt_names
# 这里是重点，需要将里面配置为最终服务端需要的域名或者IP
# 这里可以写多个，能够自行添加DNS.X = XXXXXX, 支持通配符
[ alt_names ]
DNS.1 = www.k8s-harbor.com
DNS.2 = k8s-harbor.com
[ v3_ca ]
subjectKeyIdentifier=hash
authorityKeyIdentifier=keyid:always,issuer
basicConstraints = CA:true
[ crl_ext ]
authorityKeyIdentifier=keyid:always
[ proxy_cert_ext ]
basicConstraints=CA:FALSE
nsComment   = "OpenSSL Generated Certificate"
subjectKeyIdentifier=hash
authorityKeyIdentifier=keyid,issuer
proxyCertInfo=critical,language:id-ppl-anyLanguage,pathlen:3,policy:foo
[ tsa ]
default_tsa = tsa_config1 # the default TSA section
[ tsa_config1 ]
dir  = ./demoCA  # TSA root directory
serial  = $dir/tsaserial # The current serial number (mandatory)
crypto_device = builtin  # OpenSSL engine to use for signing
signer_cert = $dir/tsacert.pem  # The TSA signing certificate
     # (optional)
certs  = $dir/cacert.pem # Certificate chain to include in reply
     # (optional)
signer_key = $dir/private/tsakey.pem # The TSA private key (optional)
default_policy = tsa_policy1  # Policy if request did not specify it
     # (optional)
other_policies = tsa_policy2, tsa_policy3 # acceptable policies (optional)
digests  = md5, sha1  # Acceptable message digests (mandatory)
accuracy = secs:1, millisecs:500, microsecs:100 # (optional)
clock_precision_digits  = 0 # number of digits after dot. (optional)
ordering  = yes # Is ordering defined for timestamps?
    # (optional, default: no)
tsa_name  = yes # Must the TSA name be included in the reply?
    # (optional, default: no)
ess_cert_id_chain = no # Must the ESS cert id chain be included?
    # (optional, default: no)

将上面的配置内容保存为openssl.cnf放到生成的服务器证书文件的目录下（注意：修改alt_names里面的域名或者IP为最终部署需要的地址，支持通配符），然后执行创建签名申请文件即可，执行运行：

注意：在 openssl.conf中一定要加有关的域名，然后生成对应服务器的证书的时候也使用域名就可以实现正常的访问了。

# 和创建CA时一样这里需要输入一堆服务器信息，输入项也是相同的。
# 不过在输入Common Name（CN）最好直接输入服务器的IP地址或者域名。
openssl req -config openssl.cnf -new -out server.req -key server.key

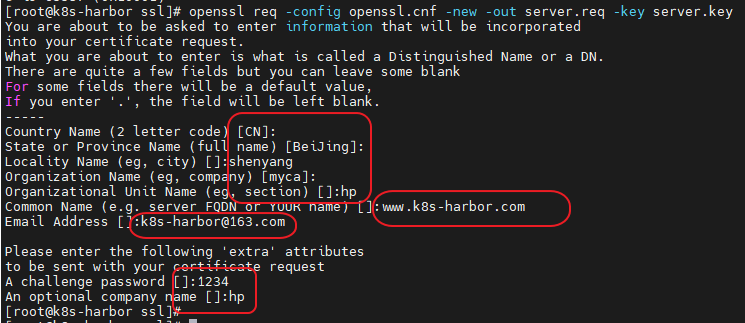

执行命令过程如下图所示：

第三步：通过CA机构证书对服务器证书进行签名认证

这里服务器的公钥是由CA证书的密钥配对加密来的。

# 这里本质上就是将签名请求文件进行签名最终得到服务器的公钥
openssl x509 -req \
-extfile openssl.cnf \
-extensions v3_req \
-CAkey myCA.key \
-CA myCA.cer \
-days 3650 \
-in server.req \
-out server.cer \
-CAcreateserial -CAserial serial

将 cer证书转成crt证书，命令如下:

openssl x509 -inform PEM -in server.cer -out server.crt

再将crt证书转成cert证书,命令如下:

openssl x509 -inform PEM -in server.crt -out server.cert

为 harbor 和 docker 颁发证书

(1) 将服务端证书拷贝至 /data/cert/目录下

mkdir -p /data/cert/
cp server.crt /data/cert/
cp server.key /data/cert/

(2) 将 server.crt 文件拷贝到docker的证书目录下，注意替换为自己的域名

mkdir -p /etc/docker/certs.d/www.k8s-harbor.com/
cp server.crt /etc/docker/certs.d/www.k8s-harbor.com/

这里需要注意的是，如果nginx中对https没有使用默认的443端口，修改为其他端口了，则此时的需要创建的目录为：/etc/docker/certs.d/yourdomain.com:port, 或者 /etc/docker/certs.d/harbor_IP:port

(3) 重启docker

systemctl restart docker

修改 harbor.yml 配置文件

修改harbor.yml配置 (位于/usr/local/harbor)，开启 https 配置。

如下前面部署 http 模式的时候将https的部分注释了，这里要将 https 的配置放开注释，而且修改证书的文件路径，如下所示

# Configuration file of Harbor

# The IP address or hostname to access admin UI and registry service.
# DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.
hostname: harbor.ninexch.com #更改为本地解析IP的域名

# http related config
http:
  # port for http, default is 80. If https enabled, this port will redirect to https port
  port: 80
# https related config
https: #开启Https
  # https port for harbor, default is 443
  port: 443 #开启端口
  # The path of cert and key files for nginx
  certificate: /data/cert/server.crt #指定SSL公有证书
  private_key: /data/cert/server.key #指定SSL私有证书

然后执行如下命令更新 harbor

# 重新安装(harbor相关容器会被删除,数据正常不会丢失)
./install.sh

# 重新编译配置文件(数据会丢失) -- no use
./prepare
docker-compose down -v
docker-compose up -d

Nginx 配置 https

修改 nginx.conf 配置，增加监听 443 端口的，跳转到harbor的8443端口，此外在这里需要指定证书文件的路径

server {
    listen 443 ssl;
    server_name www.k8s-harbor.com;

    ssl_certificate /data/cert/server.crt;
    ssl_certificate_key /data/cert/server.key;
    ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
    ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:HIGH:!aNULL:!MD5:!RC4:!DHE;

    ssl_session_cache shared:SSL:1m;
    ssl_session_timeout 5m;

    location / {
        client_max_body_size 1024M;
        client_body_buffer_size 1024M;
        proxy_redirect off;
        proxy_pass https://172.22.27.162:8443;

        proxy_set_header Host $host;

        proxy_set_header X-Real-IP $remote_addr;

        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }

    error_page 500 502 503 504 /50x.html;
    location = /50x.html {
        root html;
    }
}

然后将 http 的跳转到 https

server {
    listen 80;
    server_name www.k8s-harbor.com;
    return 301 https://www.k8s-harbor.com$request_uri;
}

然后重新加载配置文件

nginx -s reload

此时在浏览器就可以通过 http://www.k8s-harbor.com 和 https://www.k8s-harbor.com 访问，当使用 http://www.k8s-harbor.com 时会发现自动跳转到 https://www.k8s-harbor.com

Nginx 配置可能遇到额问题

注意，如果出现类似如下错误：

nginx: [emerg] unknown directive "ssl_certificate" in /usr/local/nginx/conf/nginx.conf

或者类似如下错误;

error: SSL modules require the OpenSSL library.

说明 nginx 没有安装ssl，此时进入nginx的源码目录，执行如下命令

./configure \
--prefix=/usr/local/nginx \
--with-http_stub_status_module \
--with-http_ssl_module \
--with-openssl=/usr/local/src/openssl-1.1.1o

其中：

/usr/local/src/openssl-1.1.1o 目录为openssl 源码包的解压目录

然后使用 make 编译，注意，不要使用 make install，否则会覆盖

make

然后备份原有的nginx 命令，并将新编译的nginx拷贝的nginx命令所在的目录

# 将原有的命令重命名备份
mv /usr/local/nginx/sbin/nginx /usr/local/nginx/sbin/nginx.bark

# 将新编译的nginx命令拷贝到nginx命令的目录下
cp objs/nginx /usr/local/nginx/sbin/

然后执行 nginx -V ，如下，出现 —with-http_ssl_module 表示安装成功

[root@redrose2100 nginx-1.21.4]# nginx -V
nginx version: nginx/1.21.4
built by gcc 4.8.5 20150623 (Red Hat 4.8.5-44) (GCC)
built with OpenSSL 1.1.1o 3 May 2022
TLS SNI support enabled
configure arguments: --prefix=/usr/local/nginx --with-http_stub_status_module --with-http_ssl_module --with-openssl=/usr/local/src/openssl-1.1.1o
[root@redrose2100 nginx-1.21.4]#

然后再次执行如下命令重新加载nginx配置

nginx -s reload
